Normal Press
Continuous contact from non-contact toward stronger normal force.
RGB side viewOptical tactile view
Tactile-grounded reasoning for multimodal LLMs
Touch-R1: Reinforcing Touch Reasoning in MLLMs
Touch-R1 trains multimodal models to reason from physical contact, using tactile-grounded GRPO over optical tactile streams.
2.82Maligned tactile frames
12.2Kaudited tactile sequences
4,800held-out benchmark QA pairs
60.1Touch-R1-7B average score
Abstract
Physical contact as a reasoning signal.
Touch-R1 introduces R1-style rule-based reinforcement learning to tactile reasoning. We build TouchReason-1M, a multi-sensor dataset with synchronized tactile-force records and verified reasoning QA, and TouchReason-Bench, a benchmark for tactile perception, ordinal comparison, cross-sensor consistency, and visual-tactile conflict. Touch-R1 combines ordinal-aware accuracy, cross-sensor physical consistency, structured-format control, and input-side tactile grounding, enabling MLLMs to revise visual priors using contact evidence.
Video Examples
Paired RGB and tactile streams.
Short synchronized clips from TouchReason-style acquisition: a soft plastic cup-lid protrusion under press and shear.
Upward Exploratory Motion
Shear-inducing movement reveals motion-dependent tactile response.
RGB side viewOptical tactile view

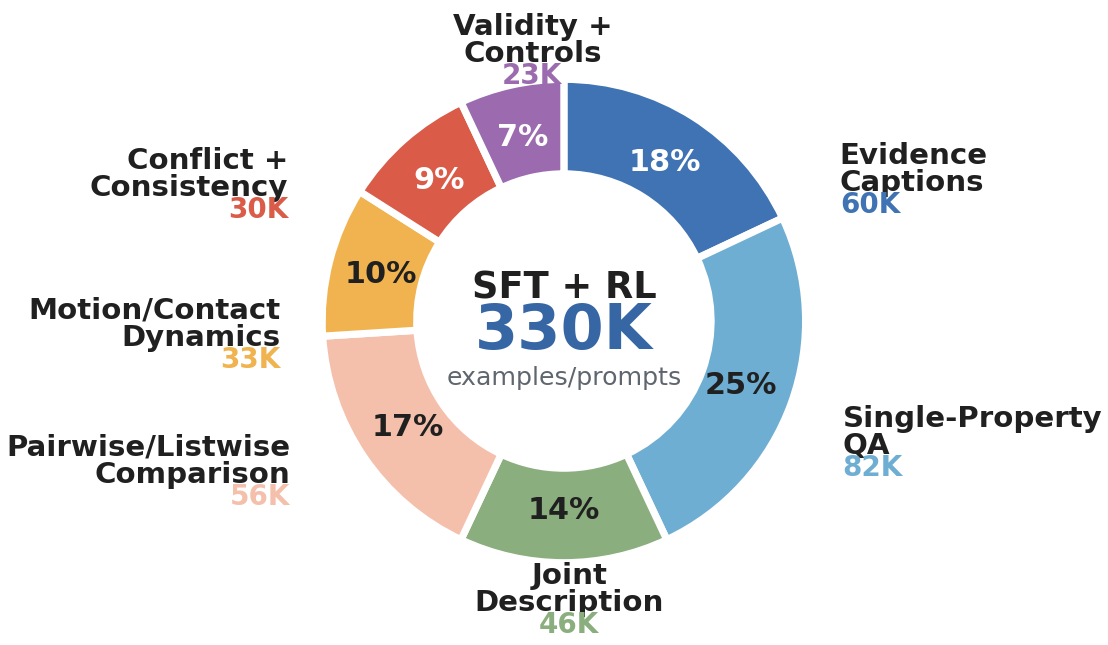

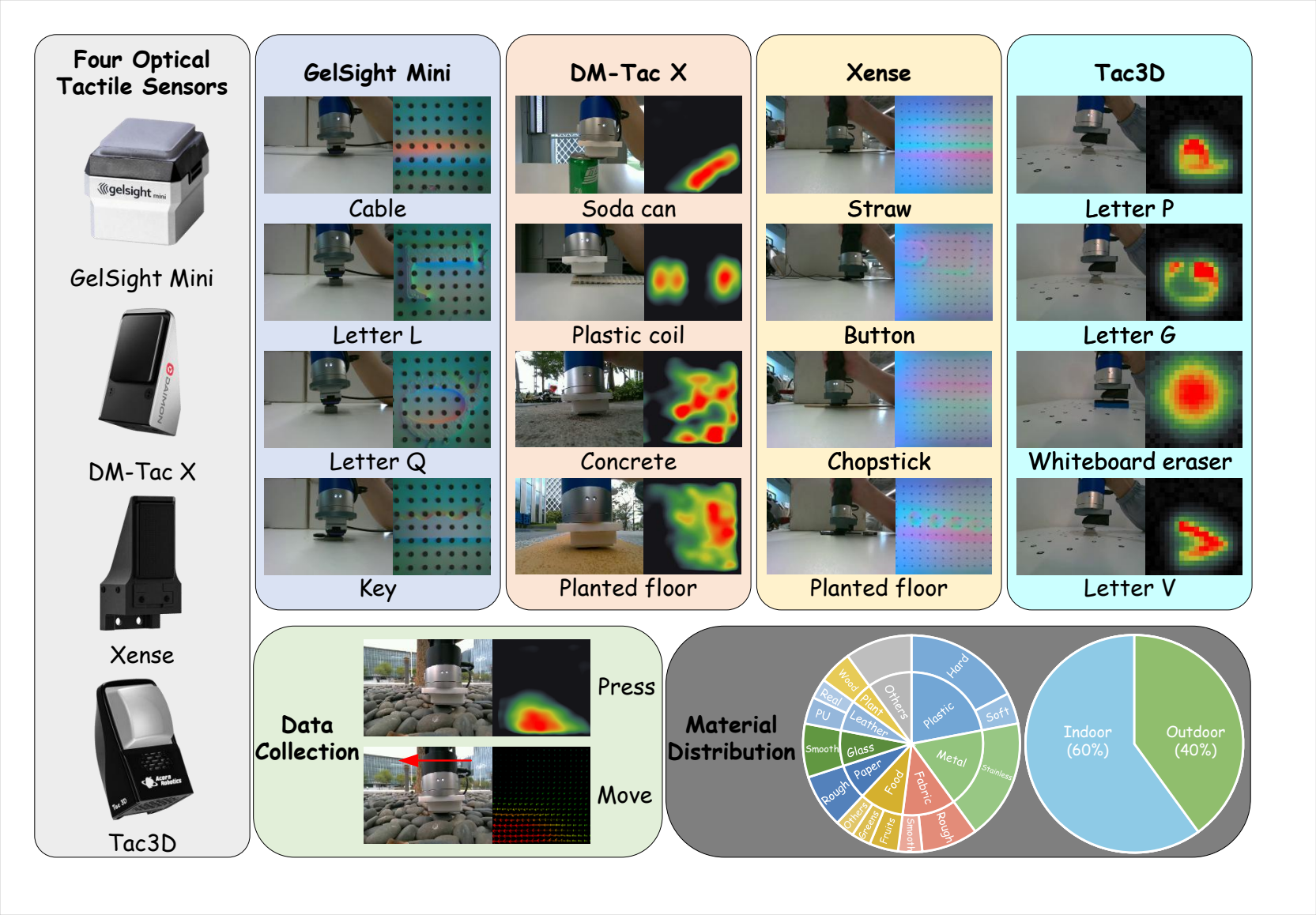

TouchReason-1M
Multi-sensor data for tactile reasoning.

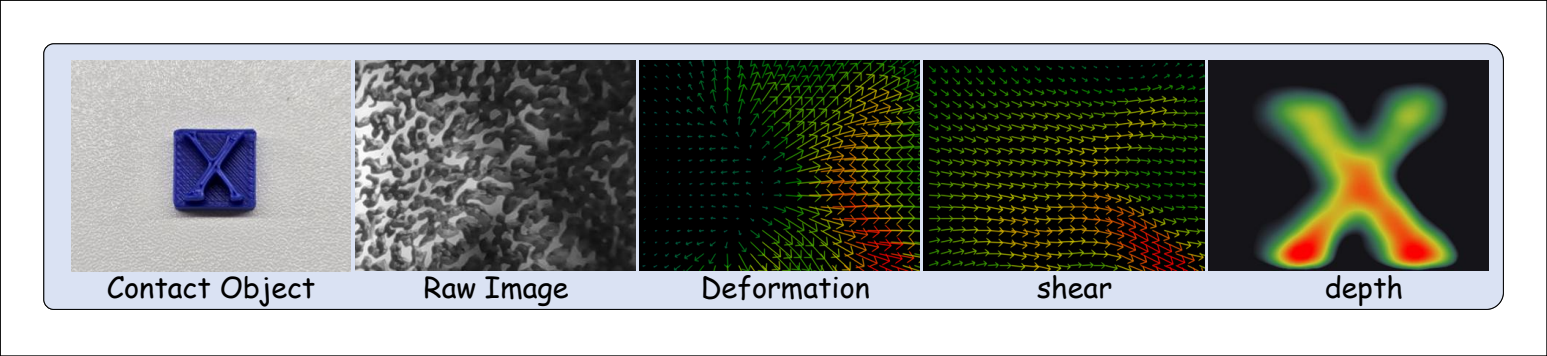

TouchReason-1M couples tactile frames, deformation fields, shear, depth, force, metadata, ordinal labels, and reasoning QA.
1,748 groupsHeld-out trial groups are separated to avoid object and contact-region leakage.
12,183 sequencesH5-readable tactile interactions with force/IMU-aligned contact traces.
230K + 100KCold-start SFT examples plus GRPO prompts with eight rollouts per prompt.
Reasoning QAVerified rationales grounded in tactile evidence.

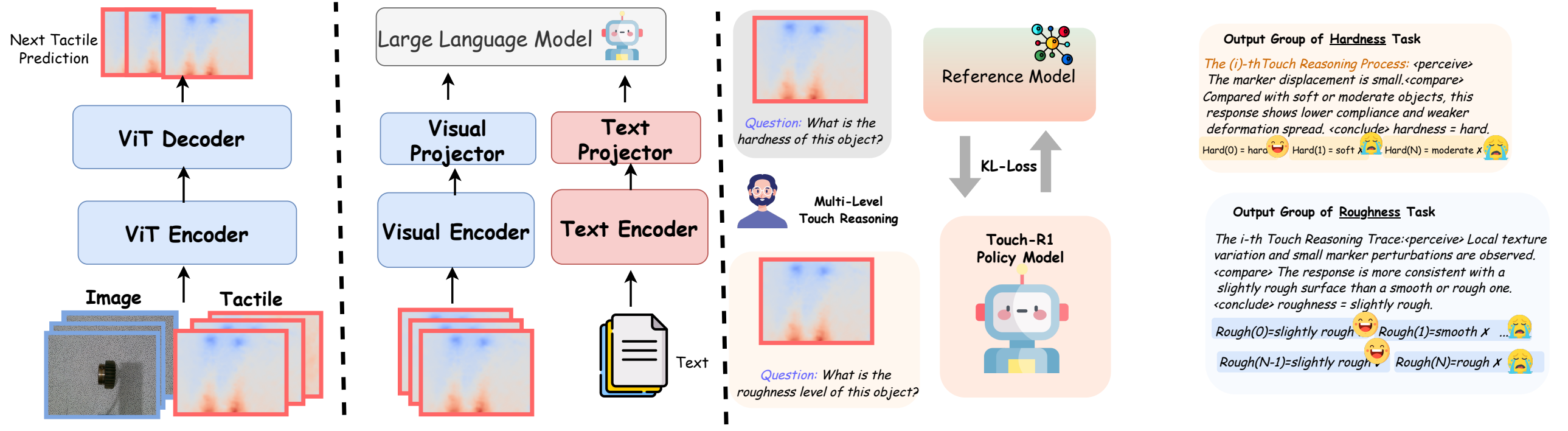

Method
Three-stage tactile-grounded training.
Touch-R1 keeps the project-page story simple: learn touch dynamics, align structured QA, then reinforce tactile-grounded reasoning.
Tactile Dynamics
Pretrain a touch encoder by predicting future tactile tokens from contact histories.
QA SFT
Align touch, vision, and language to a structured reasoning interface.
Grounded GRPO
Reward answers that are correct, consistent, parsable, and tactile-dependent.
Ordinal-aware accuracy
Cross-sensor consistency
Structured format
Tactile grounding
J_Touch-R1(theta) = J_GRPO(theta; R) + gamma G_tg(theta),
R = 0.6 R_acc + 0.3 R_cs + 0.1 R_fmt
Results
Stronger tactile reasoning across benchmark families.
Touch-R1-7B outperforms frontier MLLMs, general VLMs, and tactile-specialist baselines on TouchReason-Bench.
TouchReason-Bench Avg
Qwen2.5-VL-7B
28.0
GPT-4o
35.4
Octopi-13B
41.7
SToLa
47.5
Touch-R1-7B
60.1
| Model | OMAE ↓ | L2-EM | CSC | Avg |
|---|---|---|---|---|
| Gemini-2.5-Pro | 0.67 | 13.8 | 41.8 | 37.6 |
| SToLa | 0.45 | 22.1 | 51.9 | 47.5 |
| Touch-R1-7B | 0.24 | 39.5 | 71.3 | 60.1 |

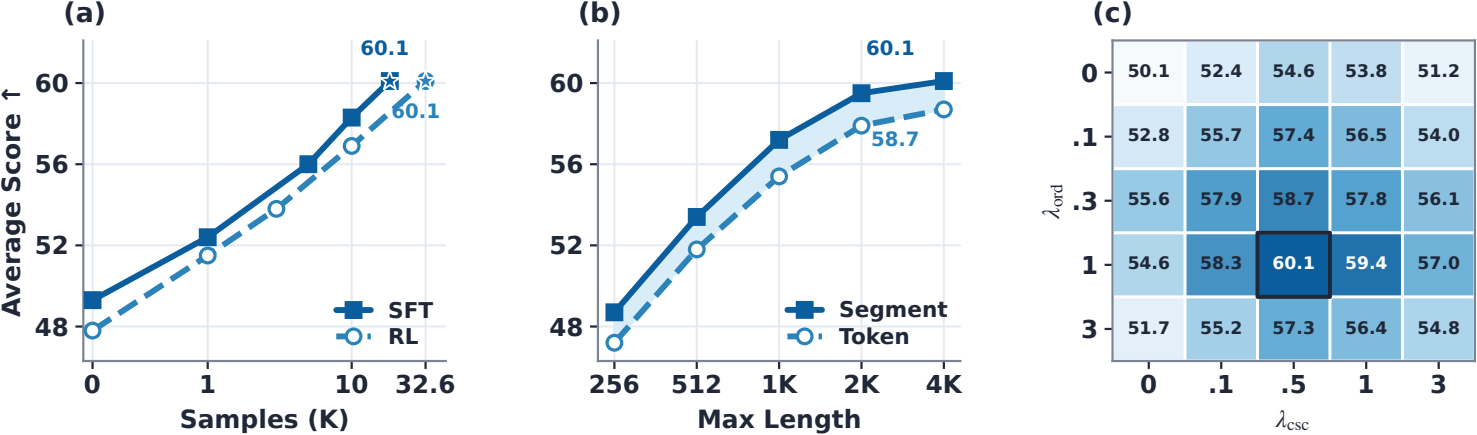

Analysis
Compact diagnostics.

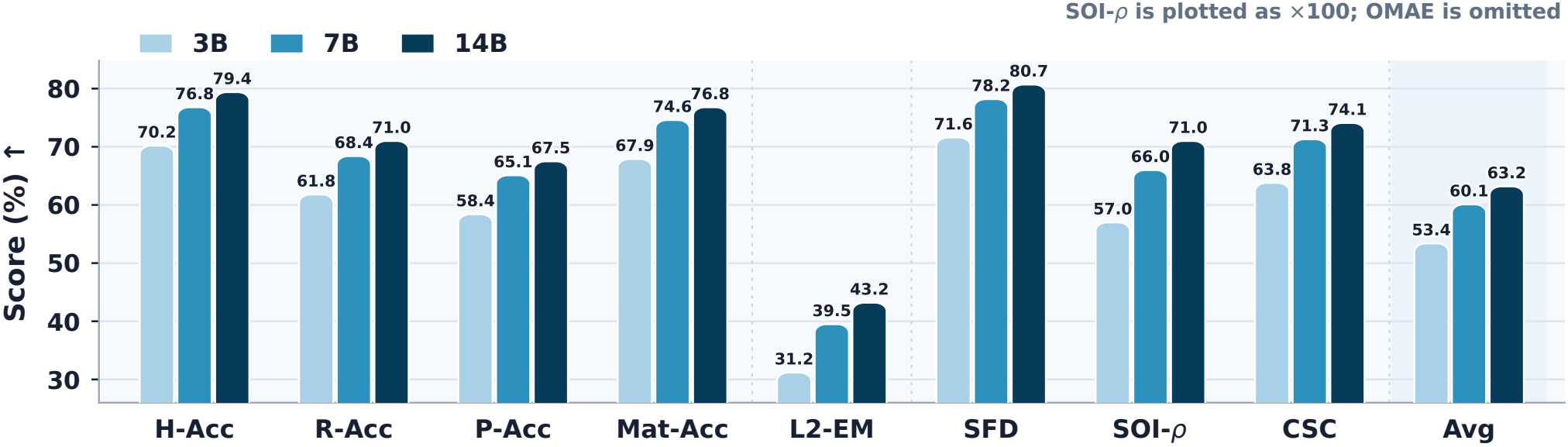

Main-paper scale behavior and reward/data ablations.
Citation
BibTeX
@article{touchr1,
title = {Touch-R1: Reinforcing Touch Reasoning in MLLMs},
author = {Touch-R1 Authors},
journal = {arXiv preprint},
year = {2026}
}
